What Do the Numbers on Eyeglass Temples Mean? A Simple Guide for Eyewear Brands

If you flip over a pair of glasses and look at the inside of the temple, you’ll usually see a small line of numbers — something like:

53□19–150

For many people in the eyewear business, these numbers are familiar but not always fully understood. New eyewear brands, wholesalers, and even some retailers often ask:

What exactly do these numbers represent?

These markings are not random. They are the standard frame size measurements used across the eyewear industry, helping manufacturers, brands, and optical stores ensure the correct fit and frame proportion.

Let’s break them down.

The Three Key Measurements on Eyewear Frames

The numbers printed on the temple usually represent three key dimensions of the frame:

Lens Width – Bridge Width – Temple Length

Using the example from the image:

53□19–150

Here is what each number means.

1. Lens Width (53 mm)

The first number refers to the lens width, measured in millimeters.

In the example:

53 mm = the horizontal width of one lens

However, in real eyewear manufacturing and product development, the way this measurement is obtained is slightly more technical than it appears.

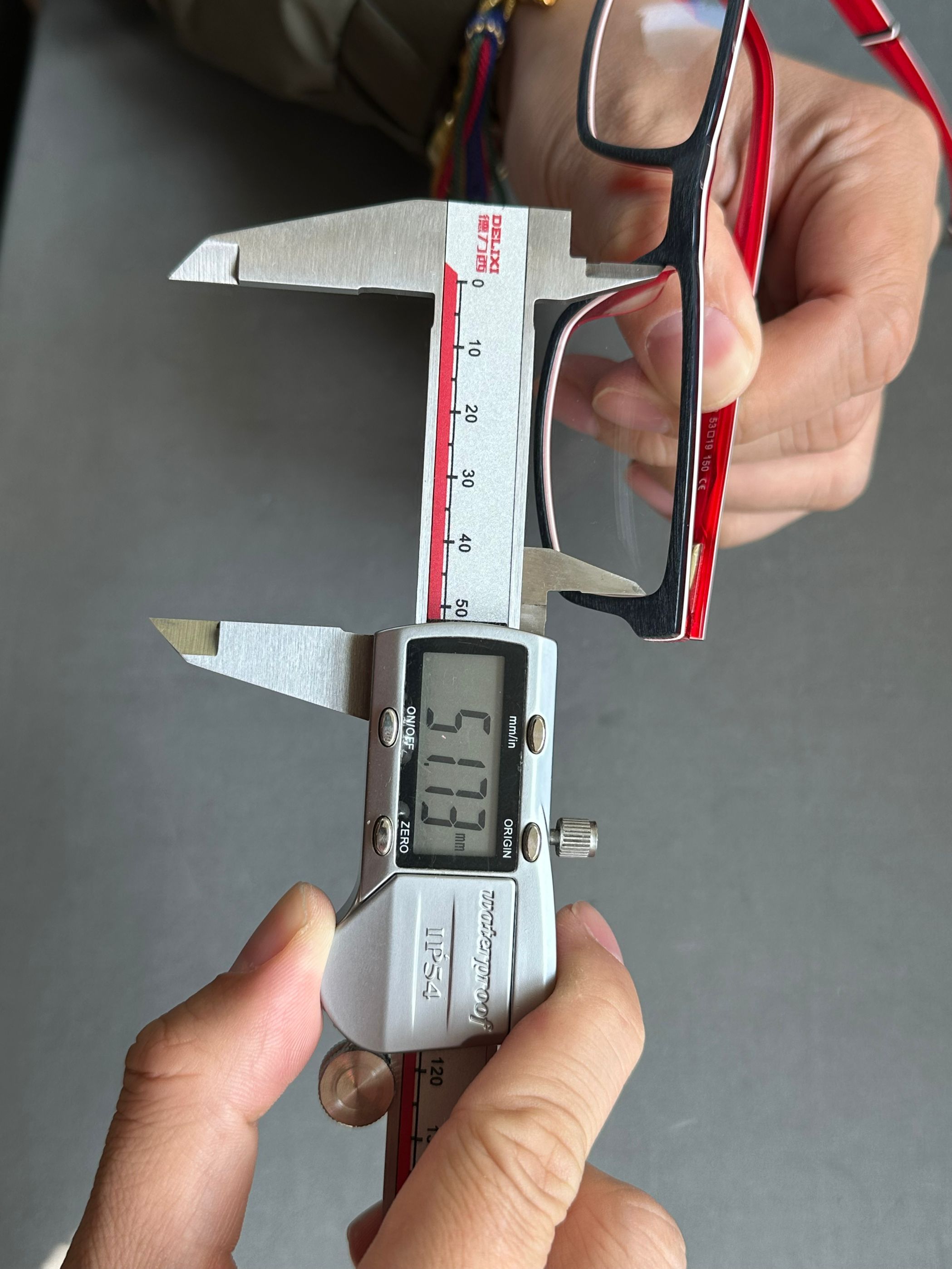

When frame manufacturers measure the lens width of a full-rim frame, they usually use a caliper to measure the inner width of the eyewire (the internal opening of the frame). This measurement represents the space where the lens will sit inside the frame.

Because most full-rim frames have lens grooves on both sides of the eyewire, the actual lens size used during lens cutting must take this into account.

To calculate the correct lens width:

Lens Width = Inner frame width + groove depth on both sides

For example:

• Inner frame opening: 52 mm

• Groove depth: 0.5 mm per side

Final lens width:

52 mm + 0.5 mm + 0.5 mm = 53 mm（Tolerance：±0.5 mm.）

This is why eyewear manufacturers, optical labs, and frame designers always consider the lens groove depth when determining the final lens dimension.

Understanding this detail is especially important when developing custom eyewear frames or working with optical lens suppliers.

2. Bridge Width (19 mm)

The middle number represents the bridge width, which is the distance between the two lenses.

In our example:

19 mm = the space between the left and right lenses

From a design and optical perspective, this is the true bridge distance between the lenses.

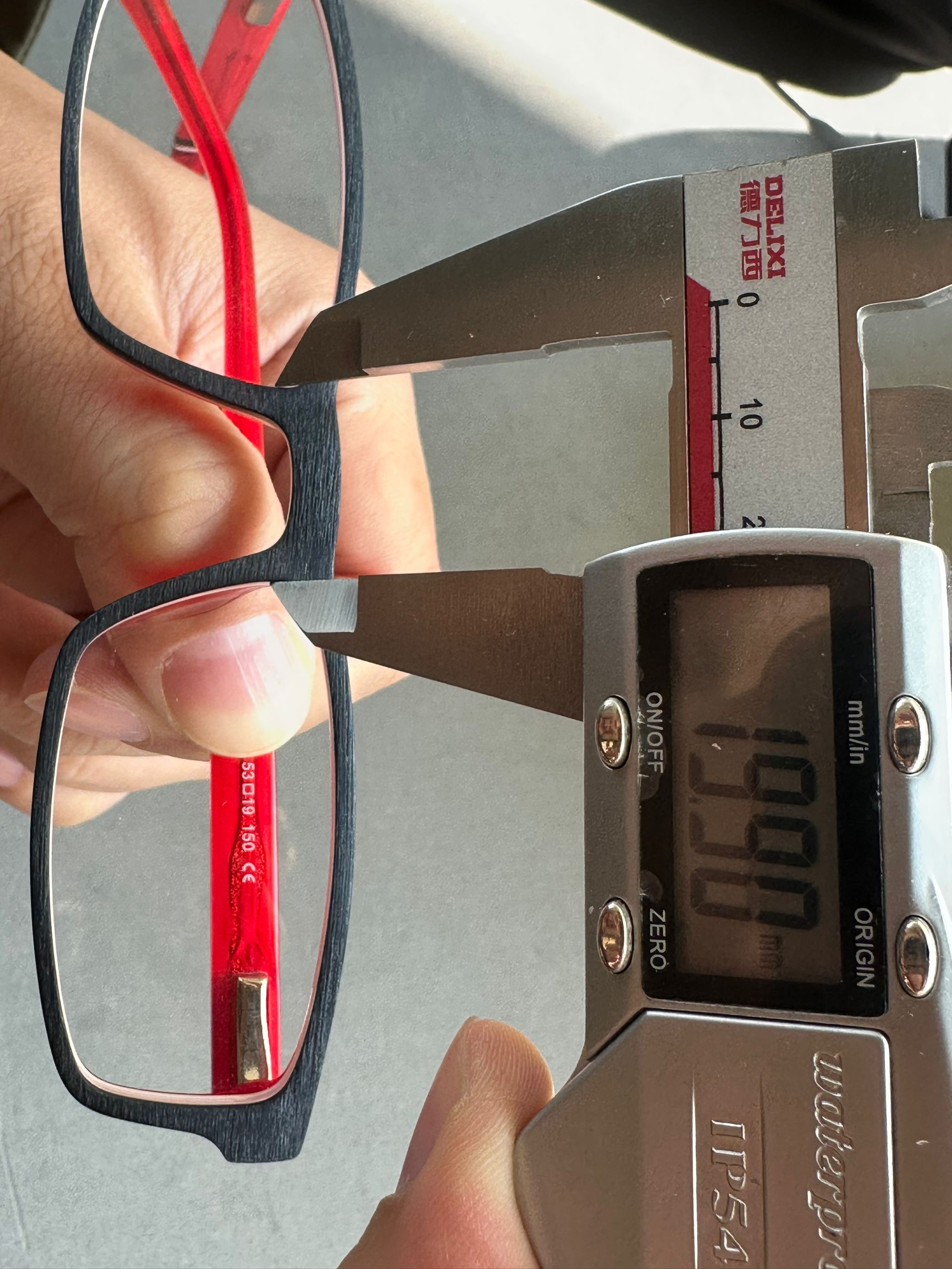

However, when measuring a full-rim frame with a caliper, manufacturers often measure the external bridge width, meaning the outside distance between the two eyewires.

Because each lens sits inside a groove, the external measurement must be adjusted to obtain the actual bridge size used in the eyewear size marking.

The calculation typically works like this:

Actual Bridge Width = External bridge measurement – groove depth on both sides

For example:

• External bridge measurement: 20 mm

• Groove depth: 0.5 mm per side

Final bridge size:

20 mm – 0.5 mm – 0.5 mm =19 mm（Tolerance：±0.5 mm.）

This explains why the bridge size printed on the temple reflects the distance between the lenses, rather than the external frame measurement.

For eyewear designers and manufacturers, this distinction is important when creating accurate frame technical drawings and production specifications.

3. Temple Length (150 mm)

The last number refers to the temple length, also known as the arm length of the glasses.

In this example:

150 mm = the total length of the temple arm

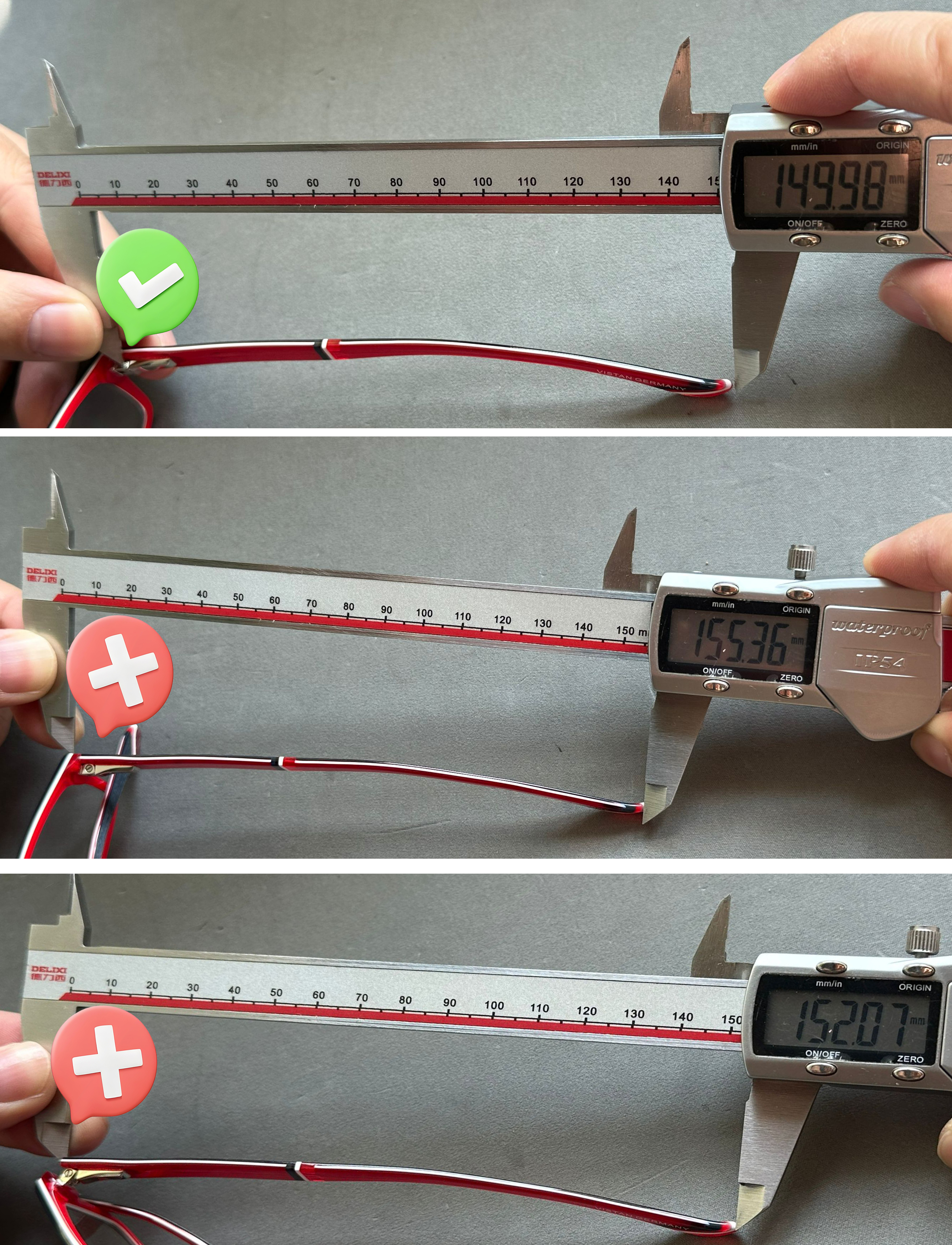

In eyewear manufacturing, temple length is measured from the hinge screw to the end tip of the temple when the temple is fully straightened.

The measurement includes:

• the hinge starting point

• the straight temple section

• the curved ear tip

Even though the temple is normally curved to fit behind the ear, it is measured as if it were fully extended in a straight line.

This ensures consistent sizing across the eyewear industry.

Typical temple length ranges include:

For most adult eyewear frames, 140 mm to 145 mm is considered the standard temple length used by eyewear manufacturers worldwide.

Correct temple length plays a key role in:

• frame stability

• wearer comfort

• proper weight balance

When designing eyewear collections, brands often keep temple lengths consistent across multiple models to simplify production and inventory management.

Why Frame Size Markings Matter in Eyewear Manufacturing

These numbers are not just for optical stores.

They are essential for many parts of the eyewear supply chain:

Product Development

Designers use these measurements to define frame proportions during the design phase.

Lens Production

Optical labs rely on these dimensions to cut prescription lenses correctly.

Inventory Management

Wholesalers often group frames by size ranges to match customer demand.

Online Eyewear Retail

Many e-commerce eyewear brands display frame size information to help customers choose the right fit.

Tips for Eyewear Brands When Choosing Frame Sizes

For brands developing new collections, size selection should consider:

Target Market

Different regions have slightly different size preferences.

For example:

• European markets often favor medium sizes

• North American markets tend to accept larger frames

Frame Style

Oversized fashion frames usually have larger lens widths.

Minimal optical frames tend to be smaller.

Product Line Consistency

Maintaining consistent size ranges across collections helps simplify production and inventory planning.

Final Thoughts

Those tiny numbers printed on the inside of an eyeglass temple carry important information about frame size, fit, and manufacturing standards.

For eyewear brands, wholesalers, and optical retailers, understanding these markings is essential when developing collections, ordering frames, or communicating with eyewear manufacturers.

The next time you see something like 53□19–150, you’ll know exactly what it means — and why it matters.
